Mentorstack Developer Guide

---

Acknowledgements

This project is based on the AddressBook-Level3 project created by the SE-EDU initiative.

---

Setting up, getting started

Refer to the guide Setting up and getting started.

---

Design

Architecture

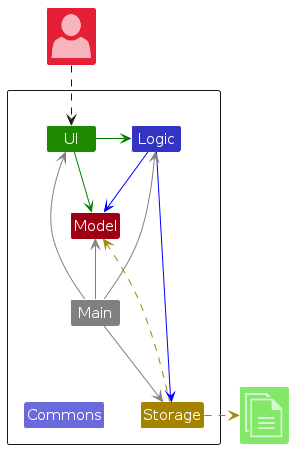

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

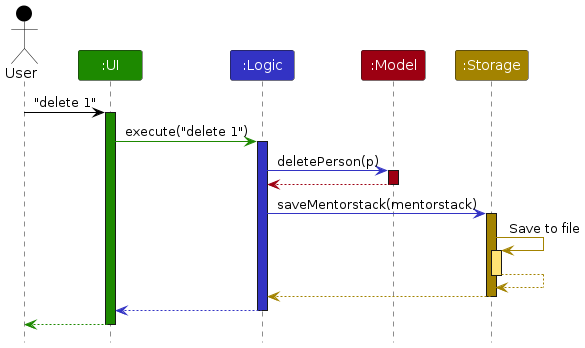

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

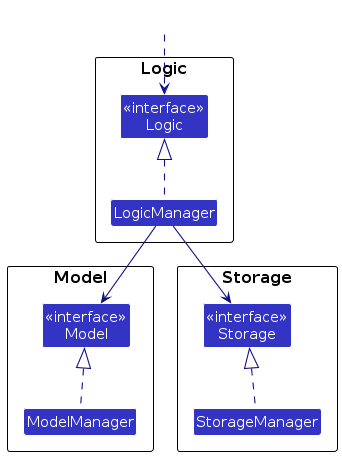

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

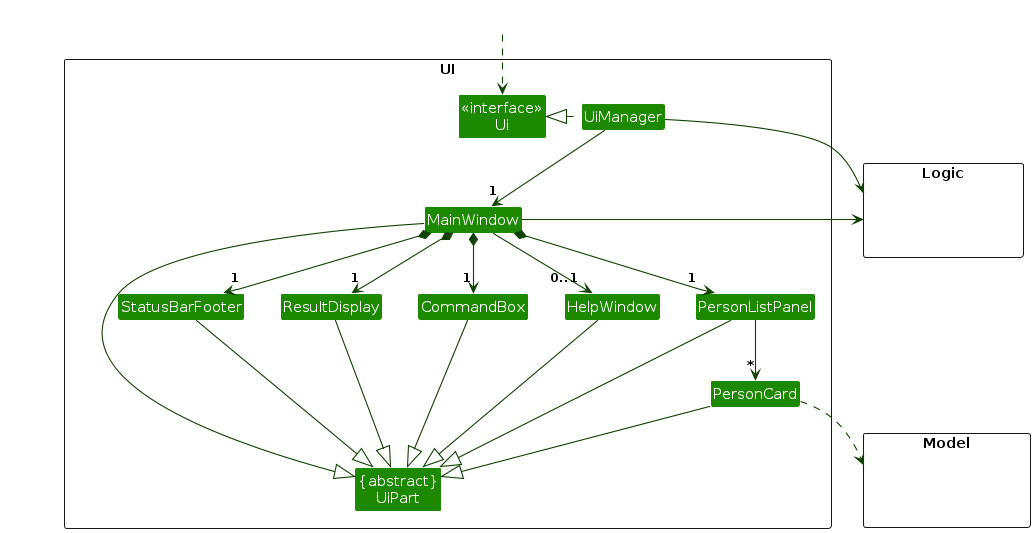

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, PersonListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Person object residing in the Model.

Logic component

API : Logic.java

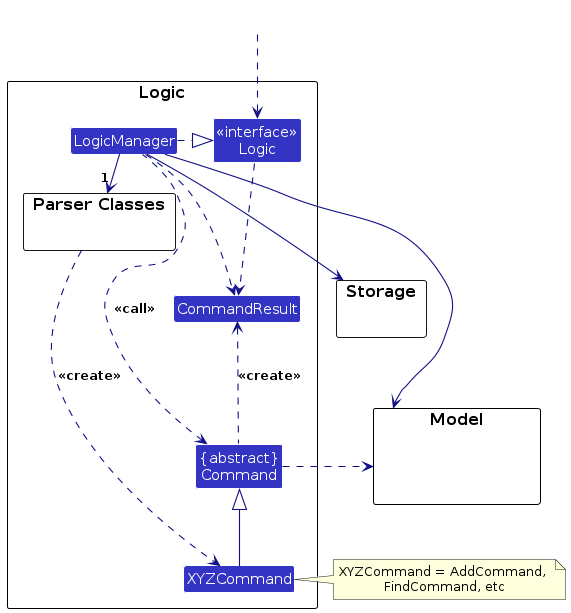

Here's a (partial) class diagram of the Logic component:

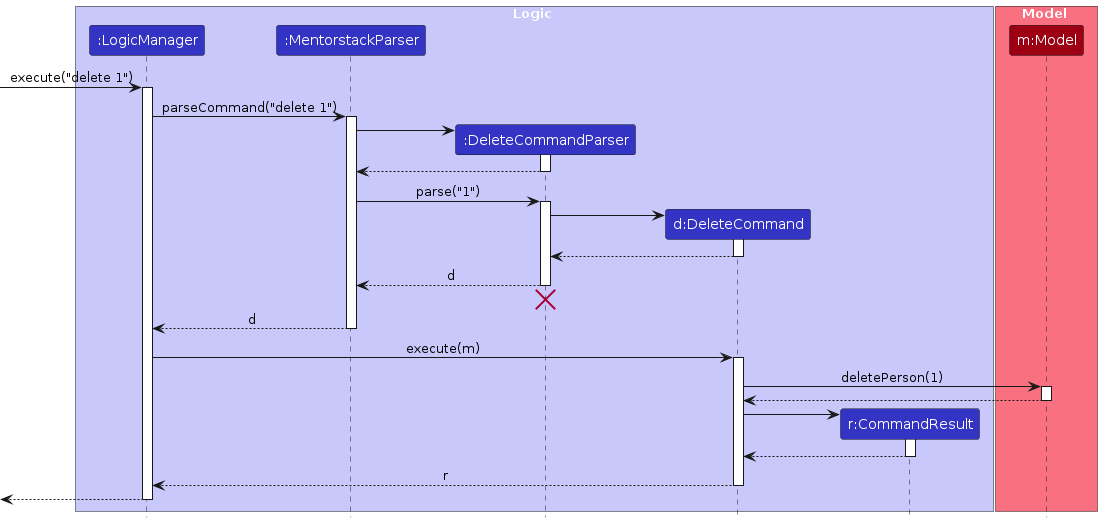

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an MentorstackParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a person).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

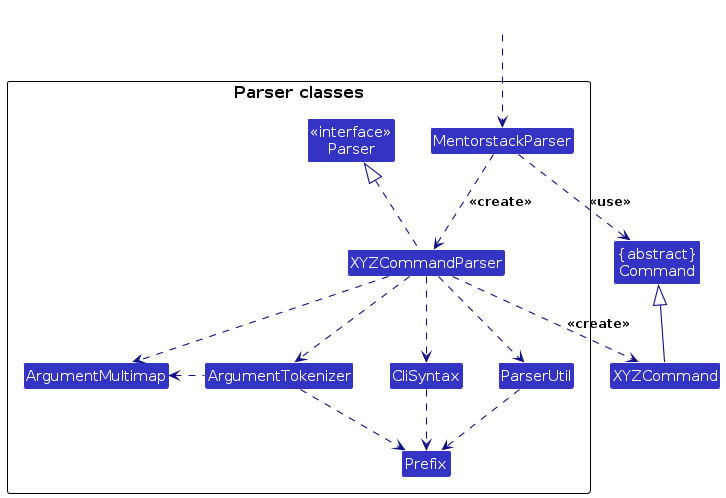

How the parsing works:

• When called upon to parse a user command, the MentorstackParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the MentorstackParser returns back as a Command object.
• All XYZCommandParser classes (e.g., MentorstackParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

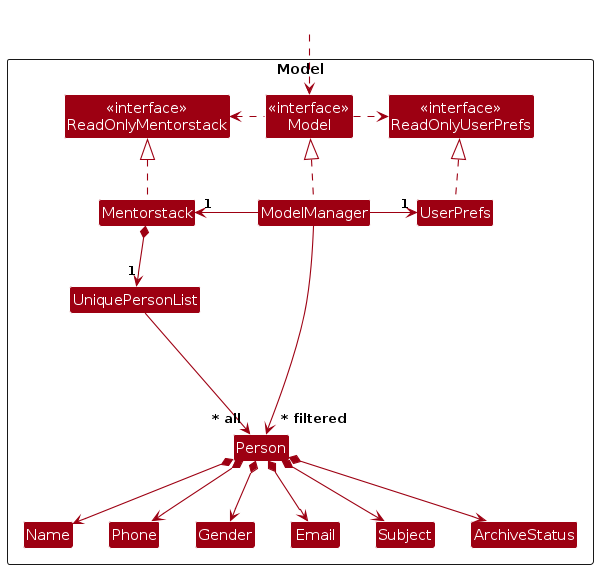

Model component

API : Model.java

The Model component,

• stores the mentorstack data i.e., all Person objects (which are contained in a UniquePersonList object).
• stores the currently 'selected' Person objects (e.g., results of a search query) as a separate filtered list which is exposed to outsiders as an unmodifiable ObservableList<Person> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

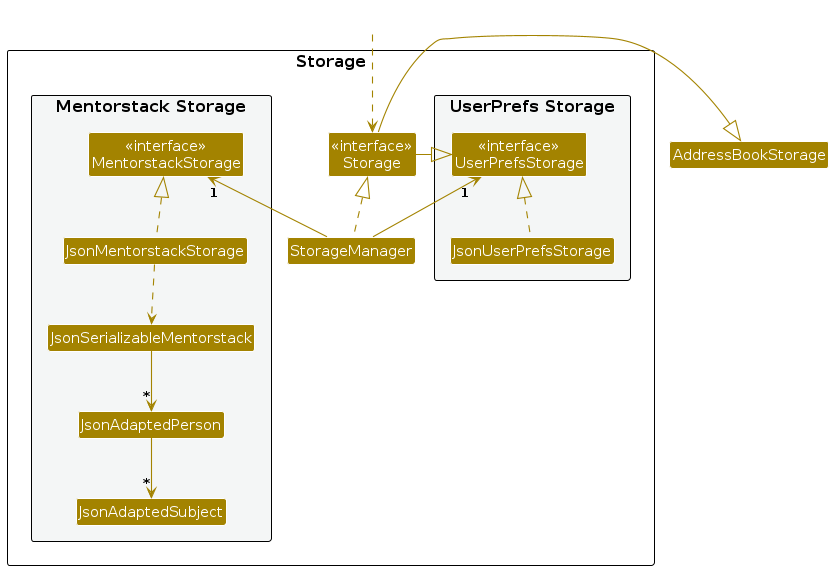

Storage component

API : Storage.java

The Storage component,

• can save both mentorstack data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both MentorstackStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the seedu.mentorstack.commons package.

---

Implementation

This section describes some noteworthy details on how certain features are implemented.

Undo feature

Implementation

The key operation to store the states of the data is in the Model interface as Model#remember().

Given below is an example usage scenario and how the undo mechanism behaves at each step.

Step 1. The user launches the application for the first time. The Mentorstack will be initialized with the initial mentorstack state, and the empty list of state history is initialized.

Step 2. The user executes delete 5 command to delete the 5th person in the mentorstack. The delete command calls Model#remember(), causing the original state before the delete 5 command executes to be saved in the history.

Step 3. The user executes add n/David …​ to add a new person. The add command also calls Model#remember(), causing another mentorstack state to be saved into the history.

Step 4. The user now decides that adding the person was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undo(), which, after verified by Model#canUndo(), will make history to pop once to give last state, and restores the mentorstack to that state.

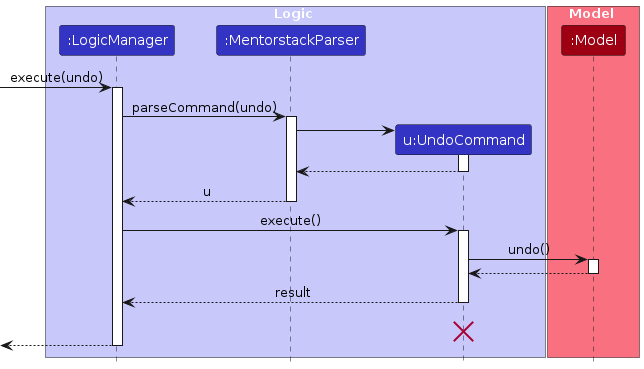

The following sequence diagram shows how an undo operation goes through the Logic component:

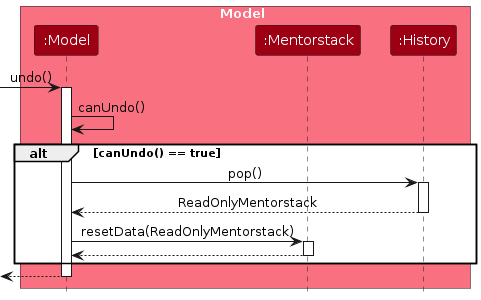

Similarly, how an undo operation goes through the Model component is shown below:

Step 5. The user then decides to execute the command list. Commands that do not modify the mentorstack, such as list, will usually not call Model#remember(). Thus, the history remains unchanged.

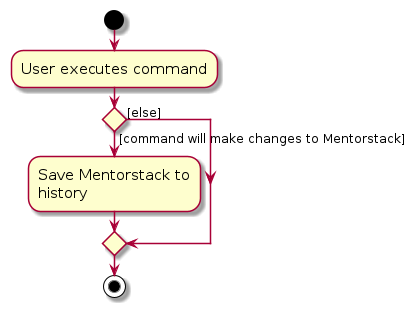

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo executes:

• Alternative 1 (current choice): Saves the entire mentorstack.

  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.

• Alternative 2: Individual command knows how to undo by itself.

  • Pros: Will use less memory (e.g. for delete, just save the person being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

{more aspects and alternatives to be added}

Stats feature

Implementation

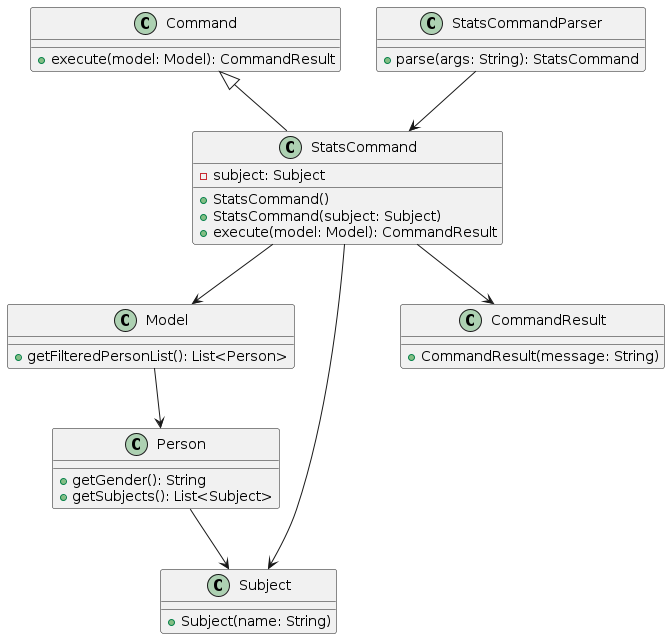

The StatsCommand provides statistical insights into the persons stored in MentorStack. It can either display overall statistics or filter by a specified subject.

Execution Flow

• If a subject is specified, filter the list of persons based on that subject.
• Count the number of persons, males, and females in the filtered list.
• Format the results into a string and return as a CommandResult.

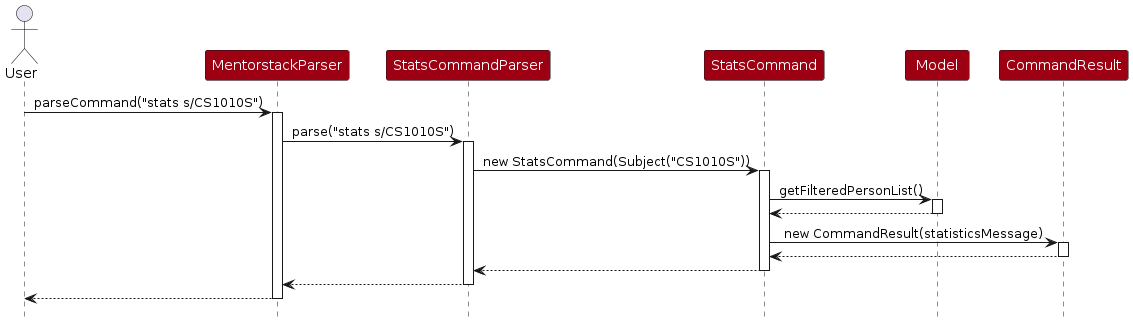

The following sequence diagram shows how a stats operation goes through the Logic component:

Student archiving

The ArchiveCommand archives students and transfers their data to an archive list stored on Mentorstack. It is similar to the active list but student entries cannot be edited.

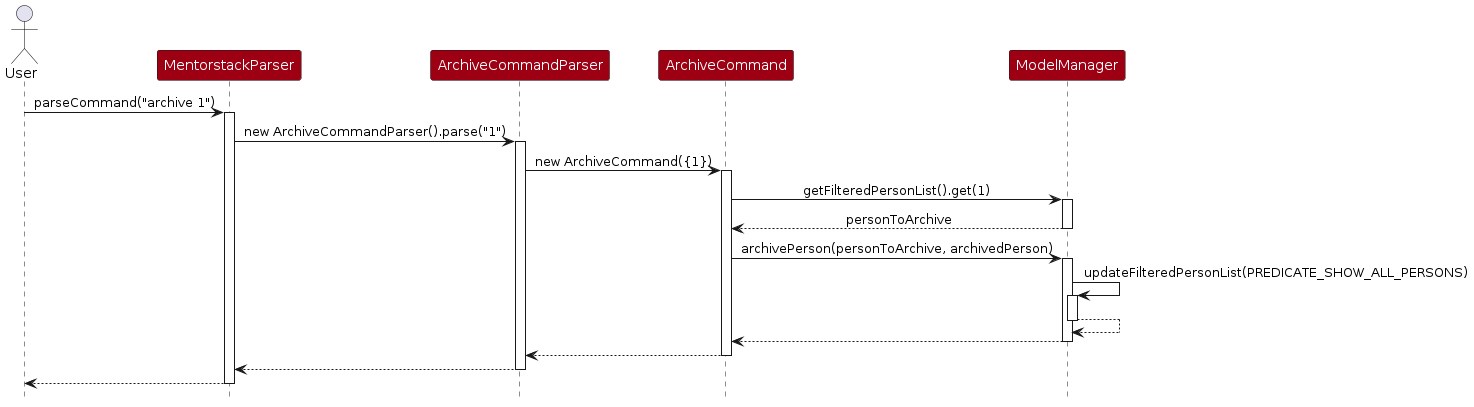

Given below is a sequence diagram for a sample ArchiveCommand

A similar sequence diagram can be drawn for the UnarchiveCommand, which moves the student back to the active list.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

Computer science tutors who need an efficient system to organize student information and track student progress

Value proposition:

Mentorstack helps CS tutors efficiently manage and track student contacts, attendance, participation, progress, and streamlines communication. It simplifies student management across different levels and courses while catering to tech-savvy users who may prefer a command-line interface.

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is Mentorstack and the Actor is the tutor, unless specified otherwise)

Use case: UC01 - Add student details

MSS

1. Tutor requests to add a new student.

2. System displays the required input format to add student information.

3. Tutor enters student's information.

4. System creates a new student profile.

   Use case ends.

Extensions

• 4a. Required information is missing.

  • 4a1. System shows an error message.
  • 4a2. System prompts the tutor to enter the missing information. Use case resumes at step 3.

• 4b. Information input format is invalid.

  • 4b1. System shows an error message.
  • 4b2. System prompts the tutor to enter information. Use case resumes at step 3.

• 4c. A student’s information already exists.

  • 4c1. System shows an error message.
  • 4c2. System prompts the tutor to add a new student or update the existing student. Use case resumes at step 3.

Use case: UC02 - Delete a student

MSS

1. Tutor requests to list students.

2. System shows a list of students.

3. Tutor requests to delete a specific student in the list.

4. System deletes the person.

   Use case ends.

Use case: UC03 - Edit student details

MSS

1. User inputs the student ID and the updated information of the corresponding student.

2. Mentorstack shows a message of successful updating.

   Use case ends.

Extensions

• 2a. The given student ID is invalid.

  • 2a1. Mentorstack shows an error message.

    Use case ends.

Use case: UC04 - Find students by name

MSS

1. User inputs a string.

2. Mentorstack shows a list of students that contains the string in the name.

   Use case ends.

Extensions

• 2a. There is no matching student.

  • 2a1. Mentorstack shows an error message.

    Use case ends.

Use case: UC05 - View all students’ information by filter

MSS

1. Tutor enters the view_students command with an optional filter type and value.

2. Mentorstack retrieves a list of students matching the filter criteria.

3. Mentorstack displays a table of students retrieved.

   Use case ends.

Extensions

• 1a. The filter or value is invalid.

  • 1a1. Mentorstack shows an error message.

  Use case ends.

• 2a. The list is empty.

  • 2a1. Mentorstack shows a message indicating no student satisfies the input requirements.

  Use case ends.

Use case: UC06 - View student distribution by stats

MSS

1. Tutor enters the stats command with an optional subject name.

2. Mentorstack calculates numbers by the filter criteria.

3. Mentorstack displays the number of distributions retrieved.

   Use case ends.

Extensions

• 1a. The filter or value is invalid.

  • 1a1. Mentorstack shows an error message.

  Use case ends.

• 1b. No subject input.

  • 1b1. Take the filter criteria as the whole data set. Back to step 2

• 2a. The list is empty.

  • 2a1. Mentorstack shows a message indicating no student satisfies the input requirements.

  Use case ends.

Use case: UC07 - Archive students

MSS

1. Tutor requests to archive a list of students.
2. Mentorstack archives the corresponding students.

Use case ends.

Extensions

• 2a. Students are not in the list.

  • 2a1. Mentorstack shows an error message.

  Use case ends.

• 2b. A student is already archived.

  • 2b1. Mentorstack shows an error message.

  Use case ends.

Use case: UC08 - Unarchive students

Preconditions: User is accessing the archive list and there are archived students. MSS

1. Tutor requests to unarchive a list of students.
2. Mentorstack unarchives the corresponding students.

Use case ends.

Extensions

• 2a. Students are not in the list.

  • 2a1. Mentorstack shows an error message.

  Use case ends.

• 2b. A student is already unarchived.

  • 2b1. Mentorstack shows an error message.

  Use case ends.

Use case: UC09 - Show all archived students

MSS

1. Tutor requests to show all archived students.
2. Mentorstack shows a list of archived students.

Use case ends.

Use case: UC10 - Mark student

MSS

1. Tutor requests to indicate a student or list of students as marked.
2. Mentorstack marks the students if they have not been marked.

Use case ends.

Extensions

• 2a. Student is not in the list.

  • 2a1. Mentorstack shows an error message.

  Use case ends.

• 2b. Student is archived.

  • 2b1. Mentorstack shows an error message.

  Use case ends.

Use case: UC11 - Unmark student

MSS

1. Tutor requests to indicate a student or list of students as unmarked.
2. Mentorstack unmarks the students if they have not been unmarked.

Use case ends.

Extensions

• 2a. Student is not in the list.

  • 2a1. Mentorstack shows an error message.

  Use case ends.

• 2b. Student is archived.

  • 2b1. Mentorstack shows an error message.

  Use case ends.

Use case: UC12 - Finish subject

MSS

1. Tutor requests to indicate a student's subject as completed.
2. Mentorstack marks the subject as completed.

Use case ends.

Extensions

• 2a. Student is not in the list.

  • 2a1. Mentorstack shows an error message.

  Use case ends.

• 2b. Student is archived.

  • 2b1. Mentorstack shows an error message.

  Use case ends.

• 2c. Student is not enrolled in the subject

  • 2c1. Mentorstack shows an error message.

  Use case ends.

Use case: UC13 - Unfinish subject

MSS

1. Tutor requests to indicate a student's subject as not completed.
2. Mentorstack marks the subject as not completed.

Use case ends.

Extensions

• 2a. Student is not in the list.

  • 2a1. Mentorstack shows an error message.

  Use case ends.

• 2b. Student is archived.

  • 2b1. Mentorstack shows an error message.

  Use case ends.

• 2c. Student is not enrolled in the subject.

  • 2c1. Mentorstack shows an error message.

  Use case ends.

Use case: UC14 - Undo an unintended operation

Precondition

1. The user has performed at least one action that modifies the application state (e.g., adding, editing, or deleting student data).

MSS

1. Tutor enters the undo command.

2. Mentorstack reverts the last operation that modified the data storage.

3. Mentorstack displays a success message.

4. Mentorstack displays a description for the operation that is undone.

   Use case ends.

Extensions

• 1a. There is no operation to undo - undo is not valid.

  • 1a1. Mentorstack shows a message indicating no previous operation exists.

  Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 persons without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.
4. The system will respond to any command within 3 seconds.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Tutor: CS educator using Mentorstack to manage students
• Student Profile: A record containing a student’s personal details (name, email, phone, subjects)

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the jar file and copy into an empty folder

   2. Double-click the jar file Expected: Shows the GUI with a set of sample contacts. The window size may not be optimum.

   3. If this still fails, refer to the instructions in the Quick Start section in the User Guide for launch instructions.

2. Saving window preferences

   1. Resize the window to an optimum size. Move the window to a different location. Close the window.

   2. Re-launch the app by double-clicking the jar file.
      Expected: The most recent window size and location is retained.

Adding a person

1. Adding a person

   1. Test case: add n/John Doe g/M p/98765432 e/johnd@example.com s/CS2103
      Expected: Student is added to the end of the list with the above details. Details of the added student shown in the status message.

   2. Test case: add n/John Doe
      Expected: No person is added. Error details shown in the status message. Can try with other missing fields.

Deleting a person

1. Deleting a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: delete 1
      Expected: First student is deleted from the list. Details of the deleted student shown in the status message.

   3. Test case: delete 0
      Expected: No person is deleted. Error details shown in the status message. Status bar remains the same.

   4. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Editing a person

1. Editing a person while all persons are being shown

   1. Prerequisites: List all persons using the list command. Multiple persons in the list.

   2. Test case: edit 1 s/CS2103
      Expected: First student is edited with the above details. Details of the edited student shown in the status message.

   3. Test case: edit 1
      Expected: No person is edited. Error details shown in the status message. At least one field must be edited.

   4. Other incorrect edit commands to try: edit, edit x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Finding a person

1. Finds persons with matching name in Mentorstack.

   1. Prerequisites: Student with name alex in Mentorstack.

   2. Test case: find alex
      Expected: Students with name containing alex is listed.

Filtering a person by view

1. Finds persons with matching values in Mentorstack.

   1. Test case: view f/s v/CS
      Expected: Students taking CS subjects are listed.

   2. Test case: view
      Expected: All students listed.

   3. Test case: view f/s v/CS f/n v/alex
      Expected: Students taking CS subjects and name containing alex are listed.

   4. Test case: view f/n
      Expected: Filter/value not specified. No error. All students are listed.

Archiving a person

1. Archives students in Mentorstack.

   1. Prerequisites: Students in the active list in Mentorstack.

   2. Test case: archive 1
      Expected: First student is moved to the archive list. Verify with showarchive. Verify that student can no longer be edited.

Unarchiving a person

1. Unarchives students in Mentorstack.

   1. Prerequisites: Students in the archive list in Mentorstack. Access this list first using showarchive

   2. Test case: unarchive 1
      Expected: First student in the archive list is moved back to the active list. Verify with list. Verify that student can now be edited.

Marking a person

1. Marks students in Mentorstack.

   1. Prerequisites: List all students using the list command. Multiple persons in the list.

   2. Test case: mark 1
      Expected: First student is marked. Verify that mark 1 again keeps first student as marked.

   3. Test case: mark 0
      Expected: No student is marked. Error details shown in the status message.

   4. Other incorrect mark commands to try: mark, mark x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Unmarking a person

1. Unmarks students in Mentorstack.

   1. Prerequisites: List all students using the list command. Multiple persons in the list.

   2. Test case: unmark 1
      Expected: First student is unmarked. Verify that unmark 1 again keeps first student as unmarked.

   3. Test case: unmark 0
      Expected: No student is unmarked. Error details shown in the status message.

   4. Other incorrect unmark commands to try: unmark, unmark x, ... (where x is larger than the list size)
      Expected: Similar to previous.

Mark a student's subject as finished

1. Marks a student's subject as finished in Mentorstack.

   1. Prerequisites: First student in the list must be enrolled in CS2103 and not enrolled in CS2104.

   2. Test case: finish 1 s/CS2103
      Expected: Subject marked as finished. Verify that running the command again simply keeps the subject as finished.

   3. Test case: finish 1 s/CS2104
      Expected: Error details shown in the status message.

Mark a student's subject as unfinished

1. Marks a student's subject as unfinished in Mentorstack.

   1. Prerequisites: First student in the list must have finished CS2103 and not enrolled in CS2104.

   2. Test case: unfinish 1 s/CS2103
      Expected: Subject marked as unfinished. Verify that running the command again simply keeps the subject as unfinished.

   3. Test case: unfinish 1 s/CS2104
      Expected: Error details shown in the status message.

Undo

1. Undoes the previous state-changing command in Mentorstack successfully.

   1. Prerequisites: Valid commands have been run that have changed the state of Mentorstack in the current session.

      1. Test case: undo
         Expected: Undoes the previous state-changing command. Mentorstack is restored to the previous state.

2. Fails to undo the commands in Mentorstack.

   1. Prerequisites: New Mentorstack session.

      1. Test case: undo
         Expected: No operation undone. Error details shown in the status message.

Appendix: Planned Enhancements

Team size: 5

1. Change condition for duplicate entry: Mentorstack currently considers entries with the same name as duplicates (case-sensitive). As it is possible for students to have the same name, this will be changed to checking for duplicate phone or email in future iterations.
2. Allow other symbols for names: Mentorstack currently only allows alphanumeric characters and spaces in names. This could be extended to include other symbols (e.g. ., /).
3. Rework name parser: Mentorstack currently includes all spaces between parts of a name. This could be reworked to remove redundant or accidental spacing.
4. Rework view command: The view command simply lists all students if invalid arguments are given. This could be reworked to always throw an error message whenever filter-value pairs are incorrectly specified to help users use the format.
5. Make stats command work for archived students: The stats command currently only displays statistics for students currently enrolled in subjects in the active list. This could be extended to work for the archive list and completed subjects.
6. Make index error more specific: Currently, Mentorstack does not flag index <= 0 as index error. This could be reworked to display an error message that the index is not within the range of the list of students.
7. Improved error message for multiple indices: For commands with multiple indices involved, Mentorstack can be reworked to be more specific in which index is invalid (if any).
8. Allow other symbols for phones: Mentorstack can allow other symbols (e.g. +, -) to account for country codes.
9. Change subjects to be case-insensitive: Subjects are currently case-sensitive in Mentorstack (i.e. CS2103 is different from cs2103). This could be extended to consider these subjects as the same by making them case-insensitive.
10. Create a search function that matches full words: find and view currently matches partial words. It could be more effective if another search function was added that searches by full matching words.
